RESINAS REFORSADAS CON FIBRA DE VIDRIO

Fibergrate Composite Structures Inc. is the leader in the manufacture, distribution, design, fabrication and installation of quality fiberglass reinforced plastic (FRP) structural products and engineered solutions. These products are lightweight and low maintenance and offer corrosion resistance, impact resistance, and high strength, as well as significant ergonomic and safety benefits.

MOLDED GRATING AND PLATE

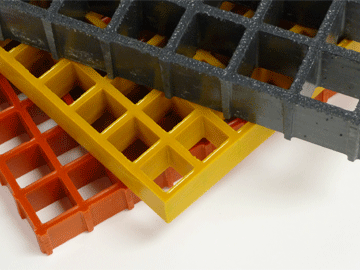

Fibergrate® corrosion resistant molded grating is available with square or rectangular mesh options, multiple resin formulations, and over 20 grating configurations which afford optimal product utilization and easy installation. Meniscus or grit top surfaces are available for superior slip resistance.

Fiberplate® molded fiberglass floor plate is installed over traditional materials (concrete, wood and steel) or grating to create a solid, slip resistant walkway or to extend the life of a high traffic area. These rugged molded floor plates are available in a wide range of colors and resin formulations and are offered in thicknesses ranging from 1/8” – 3/4” in several easy-to-install panel sizes. Fibergrate also carries covered molded grating surfaced with floor plate for areas where foot and cart traffic call for a solid walking surface.

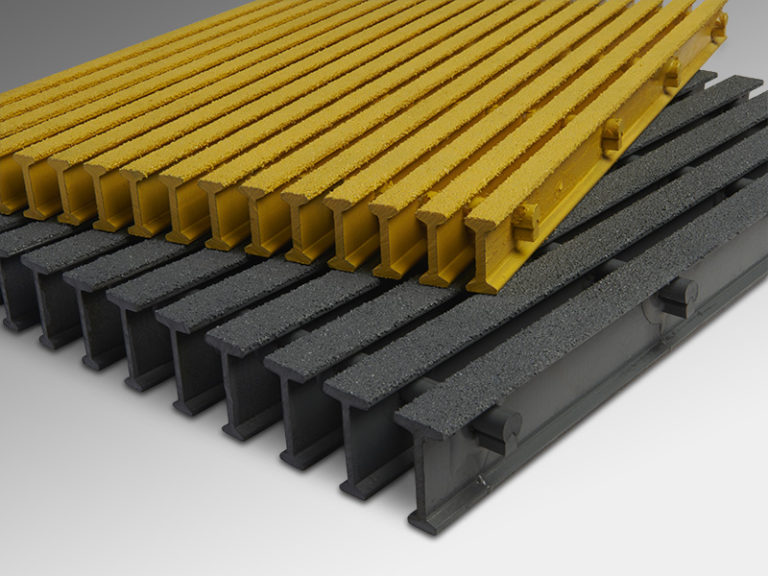

PULTRUED GRATING

Fibergrate’s pultruded products deliver proven performance and economy. Superior to conventional metal products, pultruded products combine durability and corrosion resistance with high unidirectional strength and stiffness, allowing broader use in applications requiring wide supports.

The Safe-T-Span® line includes industrial grating for standard, industrial loads and pedestrian grating for pedestrian traffic. Specially designed gratings for barefoot traffic in the commercial/recreation industry are available in the Aqua Grate® line. Fibergrate also offers pultruded Dynadeck® interlocking flooring. Dynadeck is available to provide a solid-top flooring.

High Load Capacity Grating

(Molded & Pultruded)

High load molded grating is engineered with a unique onepiece design, providing the ultimate in durability. Molded HLC grating will provide greater corrosion resistance where necessary and can withstand normal fork load traffic. High load (HI) pultruded grating capitalizes on some of the traditional benefits of pultruded grating products. This high-glass content pultruded product has been engineered to carry forklift and tractor trailer loads that traditional pultruded grating products are unable to support.

stair solutions

Fibergrate provides several slip and corrosion resistant products for your stairway safety needs. Stair tread covers are a convenient way to provide solid, slip-resistant footing to existing stairs. These covers may be installed over wood, concrete or metal steps. Stair tread covers are also available with a glow-in-the-dark nosing to provide a visible pathway in case of power failure.

Fibertred® molded stair treads are manufactured as a onepiece molded configuration. Safe-T-Span® stair treads are an assembled pultruded configuration. Both types of treads are engineered to exceed OSHA and IBC standards for safety, strength, durability, and corrosion resistance.

Designed as an alternative to the high maintenance concrete step, covered stair treads are designed for commercial and architectural applications where aesthetics and low maintenance are important considerations.

STRUCTURAL SHAPES

Dynaform® structural shapes combine high performance with cost effectiveness. These lightweight, corrosion resistant bars, rods, tubes, beams, channels, leg angles and plates are engineered to provide years of low maintenance service. In addition, every Dynaform structural shape is available in different sizes and resin systems that allow it to be tailored to your unique application.

CUSTOM PULTRUDED SHAPES

Custom pultruded shapes are designed for specific applications. These shapes are created to replace metallic products, consolidate multi-component assemblies, reduce weight, increase service life, and for many other purposes which all provide value to end-users.

GUARDRAIL, HANDRAIL AND LADDER SYSTEMS

Dynarail modular and fabricated guardrail, handrail and ladders meet or exceed OSHA, IBC and other building code requirements for safety and design, and they are easily assembled in the field. These fiberglass guardrail, handrail and ladder systems provide a long, low maintenance solution to increase worker safety. NSF rated ladders are available by special order; contact Fibergrate for more information.

Non-Magnetic Access Flooring

Metal access floor panels found in MRI magnet rooms are no longer allowed to be used due to new cable routing requirements that some MRI vendors have implemented.

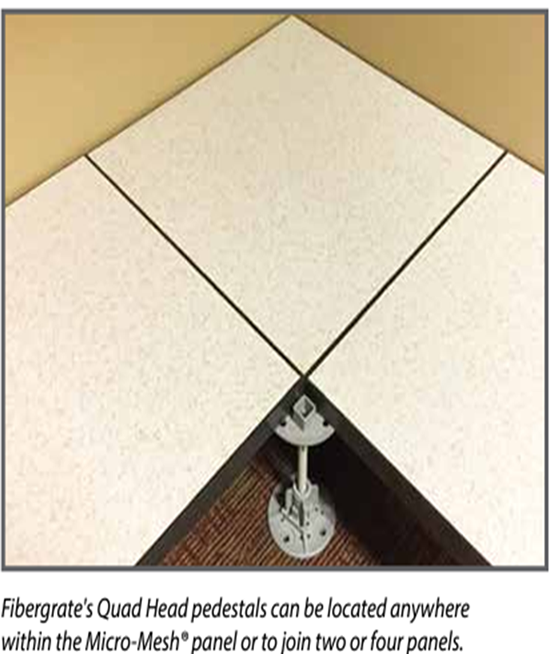

Fibergrate Composite Structures’ covered Micro-Mesh® grating panels and non-magnetic pedestals should be the first choice for customers or architects requiring MRI cable routing via flush or surface mounted access flooring. Fibergrate offers a completely non-magnetic system.

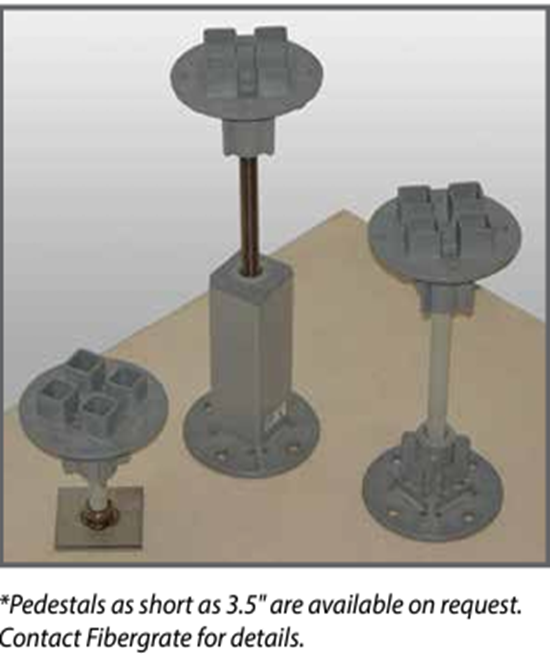

Fibergrate has customized our standard Micro-Mesh® panels and pedestal systems in order to provide a solid top Micro-Mesh panel covered with a high pressure floor laminate and non-magnetic grating pedestals to more completely meet the needs of this new and demanding application. Pedestals are manufactured using Stainless Steel 316 nuts in the composite head and fiberglass reinforced plastic (FRP) rod for adjustability.

Fibergrate Composite Structures is the originator of molded fiberglass reinforced plastics (FRP) grating. With nearly 50 year of experience, Fibergrate continues to lead the industry in innovative products and has the ability to provide customized solutions to address unique issues for our customers.

When tested according to the procedure outlined in NFPA 99, the high pressure floor laminate used to cover the Micro-Mesh grating panel has a maximum resistance of 20,000 megaohms measured between the laminate surface and an applicable ground reference. (Typical Values: 11,000-12,000 Megaohms)
